How to build a rifle turret tape that fits your scope.
A rifle turret tape turns your ballistic solution into yardage
labels around an exposed elevation dial. Each mark corresponds to
the elevation correction your rifle needs at that distance, so you
can range and dial without converting MOA or MIL in the field. It
requires a smooth band on the turret where the printed strip can sit.
First: make sure your scope is compatible
A turret tape needs an exposed elevation turret
with enough flat surface to wrap a printed strip around. It
probably won't work if:
Your elevation adjustment is a coin slot under a
cap. Common on older hunting scopes, with no
rotating turret to tape.
Your turret is too small or crowded. If there's no clear
band of space to wrap a strip, the tape has nowhere to live.
Checking compatibility is on you. Eyeball your turret before
you buy. Not sure?
Email us a photo
and we'll tell you straight.
The five steps.
01
Measure your turret and choose a tape height
Calipers across the smooth band of the elevation turret is the
easy way. No calipers? Download the sizing gauge from the scope
step before entering a diameter. Print it at 100%, cut it out,
wrap it around the smooth band, and read the estimated diameter
where it overlaps. Enter that estimate, then download the sample
PDF to check fit and style without an email.
The same printed preview includes actual-size samples labeled
4–11, 13, and 15 mm, plus your chosen height if different. Cut out the heights you are
considering and compare them against the smooth band before
choosing the tape height in the builder. Every copy in the
purchased PDF uses only the height you select.
Cut out a sample tape and check the seam. Increase the diameter
if there is a gap, or decrease it if the tape overlaps.
Regenerate until the edges meet cleanly.
seam gap = increase • overlap = decrease
02
Know your units: MOA or MIL
It's printed on the turret itself or in your scope manual.
Most American hunting scopes click in 1/4 MOA
(4 clicks per MOA); most MIL scopes click in
0.1 MIL (10 clicks per MIL). If your turret
says "1 click = 1/4 in. at 100 yds," that's MOA.
Turret says
Clicks per unit
1/4 MOA per click
4
1/8 MOA per click
8
0.1 MIL per click
10
03
Count your rotation
How many MOA or MIL does one full revolution
of your turret cover? It's usually marked on the turret,
commonly 15–25 MOA or 5–10 MIL. This tells the tape where to
wrap and whether your longest dial-ups land on a second
rotation.
04
Enter your ballistics, accurately
Bullet make and weight, ballistic coefficient, muzzle
velocity, zero range, and sight height. A chronographed
velocity beats the number on the ammo box. Be straight with
yourself here: the tape is only as good as the data
you feed it. If your velocity is off by 100 fps,
your far marks will be off too. You can update velocity and
zero range free for the life of the order.
Each PDF contains 10 matching cutout tapes for one custom
setup. Cut out one and keep the others as spares. Reprint
whenever you need. No physical tapes are shipped.
Print at 100% scale, never "fit to page,"
which shrinks the tape and ruins the wrap length. Use your
printer's best quality setting too; most
printers have a photo preset (glossy or matte) that prints
the crispest tick marks, while standard quality can come
out grainy.
For the toughest tape, print on vinyl sticker
paper so it becomes a true weather-resistant,
peel-and-stick sticker. We like this
glossy pack
or this
matte pack
on Amazon (a few dollars either way). No vinyl on hand?
Print on plain paper and lay a strip of clear
tape over the printed side before you cut it out.
It's cheap lamination that survives rain and range bags.
Cut the strip out and wrap it snugly around your elevation
turret, with the tape's zero mark on your scope's indicator
line. Vinyl peels and sticks on its
own; with plain paper, wrap the strip and hold it down with
clear tape. Either way, finish by laying a small piece of
clear tape across the ends (the seam where
the strip meets) so nothing lifts or peels in the field.
Make the tape yours.
Start with a ready-made finish, then tune the colors, numbers,
dimensions, and turret-turn rows to match your dial and the way
you read it. Purchased tapes can be restyled later at no charge.
Classic
Dark
Lime
Color every mark
Choose the background, main and halfway ticks and numbers,
minor ticks, and end caps. The builder warns when a combination
may be hard to read, but still lets you preview and order it.
Set the readout
Use yards or meters, full or compact numbers, optional halfway
labels, and your preferred label size and weight.
Fit your dial
Choose a 4–15 mm tape height and one, two, or three turret-turn
rows based on the elevation range you need. Print the preview at
100% to compare its labeled height samples on your turret. The
purchased PDF repeats only the height you select.

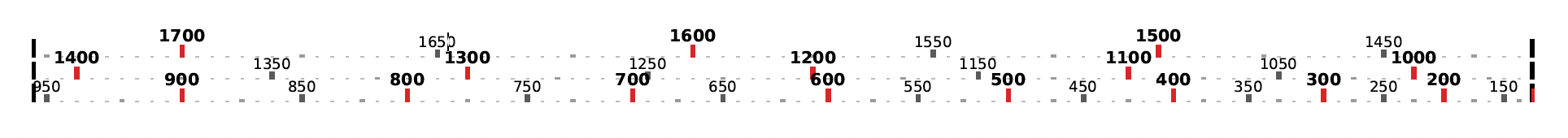

What wrap count means
The printed strip is one turret circumference long and circles
the dial once. Each selected wrap adds a row above the previous
one for another full turn of the elevation turret.
1 wrap
First turret turn
Turn 1100–875 yd
One large row and the lowest-profile layout.
2 wraps
First and second turns
Turn 2900–1,300 yd
Turn 1100–875 yd
The second-turn row stacks directly above the first.
3 wraps
First through third turns
Turn 31,325–1,600 yd
Turn 2900–1,300 yd
Turn 1100–875 yd
The third-turn row stacks above the second for the most elevation range.
Verified example: DialWRX's 140-grain G1 .600 demo load at 2,750
fps, a 100-yard zero, 0 ft, 59 F, 29.92 inHg, and 78% humidity, on
a 1/4-MOA turret with 25 MOA per turn. Calculation limit: 3,000
yards. Your endpoints will vary with your rifle, load, conditions,
zero, and turret.
The fine print, in plain words
This is a digital product. You're buying a
custom-computed PDF, delivered instantly in your browser and
inbox.
Velocity, zero range, conditions, and appearance are
free to update for life. Each setup also includes
one correction to eligible scope and dial inputs within 7 days
of purchase, including sight height and turret mechanics. Your
projectile selection stays locked.
Environmental updates are free forever.
Shooting at a different altitude, temperature, or
humidity? Regenerate your tape for the new conditions
at no charge from your order history. No expiration.
Restyling is free forever. Change colors,
background, wrap count, tape height, or yards/meters on a
purchased tape from your order history. No expiration.
Update frequency may be limited for abuse, service capacity, or
operating costs. See the
update-frequency policy.
Scope compatibility is your responsibility.
Confirm you have an exposed turret with room for a tape before
buying.
Rifle turret tape questions.
What do I get with one custom setup?
One custom setup covers one rifle, load, and turret
configuration. You receive a print-ready PDF with 10 matching
cutout tapes, not 10 different setups. Print at home and reprint
whenever you need. No physical tapes are shipped. One custom
setup is $25, or $22 each for 2–3 and $20 each for 4 or more in
one order. Quantity
discounts count custom setups in the same order, not printed
copies.
Will a custom turret tape work on my rifle scope?
Your scope needs an exposed elevation turret with enough flat,
vertical surface for a printed strip. A coin-slot adjustment
under a cap, or a turret with no clear band, will not work.
Check compatibility before purchasing.
How do I measure my scope turret for a custom tape?
Measure across the smooth band with calipers, or download the
sizing gauge from the scope step before entering a diameter. Print
the gauge at 100% and wrap it around the band to estimate diameter.
Download the sample PDF to compare labeled tape heights and check
the seam. Adjust until the sample edges meet without a gap or overlap.
How do I know if my scope is MOA or MIL and how many clicks per unit?
Check the turret or scope manual. Most American hunting scopes
use 1/4-MOA clicks, while many MIL scopes use 0.1-MIL clicks.
You also need the amount of elevation in one complete turret
rotation.
What happens if I enter the wrong velocity or ballistic data?
The tape is calculated directly from your inputs, so mistakes
move the yardage marks. Velocity, zero range, conditions, and
appearance are free to update for life, subject to the update-frequency policy.
Each setup also includes
one correction to eligible scope and dial inputs within 7 days
of purchase, including sight height and turret mechanics. Ammo,
ballistic coefficient, bullet weight, and drag model stay
locked after purchase, so verify those before checkout.
What paper should I print a turret tape on?
Vinyl sticker paper produces a weather-resistant, peel-and-stick
tape. Regular paper also works when protected with clear tape.
Always print at 100% scale, never “fit to page.” Cut the strip
out and wrap it snugly around your elevation turret, with the
tape's zero mark on your scope's indicator line. Secure the
finished seam so it cannot lift in the field.
Got your measurements? Build your tape.
Free unlimited sizing and layout previews, including printable
diameter and tape-height guides. Purchased yardage marks are
generated from your ballistic inputs after checkout.
